SoundLam 0-PR

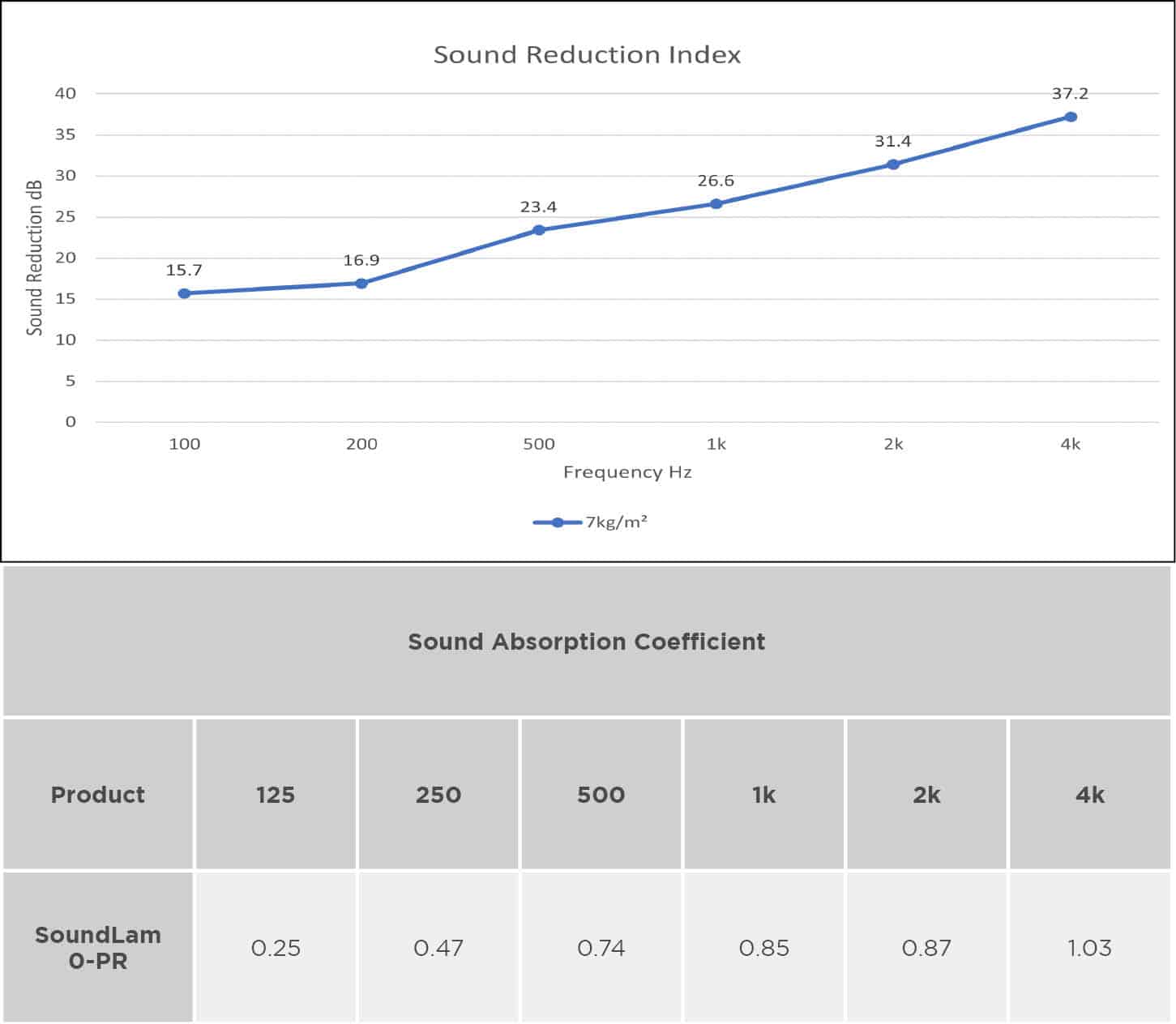

SoundLam 0 PR sound reduction index diagram

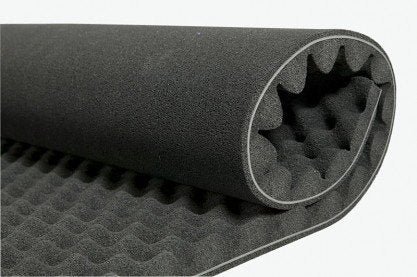

SoundLam 0 PR roll
SoundLam 0-PR
SoundLam 0 PR sound reduction index diagram
SoundLam 0 PR roll

SoundLam 0-PR Acoustic Laminate Sheets

  • Two sheets per pack
  • 1200 x 1000mm x 45mm
  • High performance soundproofing
  • Plain foam backing or with self-adhesive backing
  • Class 0 Fire rating
  • Cut to shape or bespoke shapes available
  • Delivery 5-7 working days
Read more
Sale price£110.00£121.00 ex VAT
Self-Adhesive Backing

Self-Adhesive Backing
Features & Benefits Applications Specifications Downloads

SoundLam 0-PR

High performance industrial grade acoustic laminate, used for general high performance soundproofing, such as engine compartments, machine enclosures, pump rooms, etc. This product is designed to provide high sound transmission loss and good noise absorption owing to its multi-layer construction.

The facing foam side has the advantage of a profiled egg-box pattern, which increases the surface area to provide a more absorbent area than that of standard foams.

This product is supplied in a box of two sheets 120 x 100cm, but can be supplied pre-cut to specific sizes and shapes if required. We can also offer a factory applied PVC protective coating to help seal against the ingress of moisture, oils and other fluids.

Available with a plain foam backing or with a peel and stick self-adhesive backing, this product will adhere to most surfaces providing it is free from oil and grease. If it is to be under hung, we also recommend using mechanical fixings such as penny washers with suitable screws or bolts.

We also supply a high strength spray adhesive SCS96 or a brush on contact adhesive SCS1210 that provide an extremely strong bond and can be used on any of our products.

Features & Benefits

  • Top selling industrial grade acoustic liner - 7kg per Square Metre
  • Foam is Class 0 Fire rating tested to BS476 Parts 6 & 7 of the building regulations
  • Product contain a high density noise barrier core to block sound transmission
  • Egg-box faced foam provides a higher level of absorption
  • Can be cut into shaped parts or supplied in bespoke kits
  • Other sizes available

Typical Applications Would Include:

  • Acoustic enclosures
  • Engine rooms & Generators
  • Noisy pumps
  • Compressors

Specifications:

Material Colour:
Black
Thickness:
45mm
Dimensions:
1200 x 1000mm two sheet per pack
Other sizes available:
2000 x 1200mm rolls
SRI Rating:
23dB

Suitable For:

Industry
Marine
Media
Military
Home

Downloads

SoundLam 0-PR Datasheet
