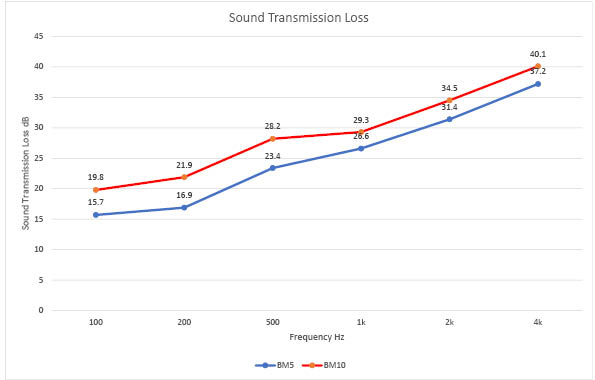

Noise barrier mat sound transmission diagram
Barrier noise mat
Noise barrier mat sound transmission diagram

Noise Barrier Mat

  • High density mass loaded vinyl sheet
  • Excellent damping of impact noises
  • Prevent sound transmission
  • Self-adhesive backing
Read more
Sale price£21.11£47.24 ex VAT
Size and Weight

Size and Weight
Self-Adhesive Backing

Self-Adhesive Backing
Applications Specifications Downloads

Typical Applications Would Include:

  • Mechanical equipment
  • Electrical equipment
  • Automotive components
  • Building industry for walls and ceilings

Specifications:

Material Colour:
Black / Grey
Thickness:
BM5 = 2mm | BM10 = 4.5mm
Dimensions:
2000 x 1200mm, Also available in longer rolls
Density:
BM5 =5kg/m² | BM10 = 10kg/m²

Suitable For:

Architects
Industry
Marine
Community
Military
Home

Downloads

Barrier Mat Datasheet

Performance

These acoustic noise barrier mats are available in 2 weights, 5kg/m² and 10kg/m² where a high level of noise attenuation is required.

We can supply acoustic mats with a self-adhesive backing and a foil facing or they can be incorporated into foam laminates.

Airborne noise insulation in vertical surfaces with low surface mass (lightweight partitions or panels in various materials)

Airborne noise insulation in ceilings

Reduction of impact noise levels in all types of frameworks and in floating floors

Damping of impact noise caused by rain on metal roofs

Used in combination with sound absorbent materials, these acoustic mats results in products with high acoustic performance characteristics

Applications in the industrial sector range from soundproofing booths to the insulation of machine rooms, drainpipes and acoustic dampening of sheet metals
